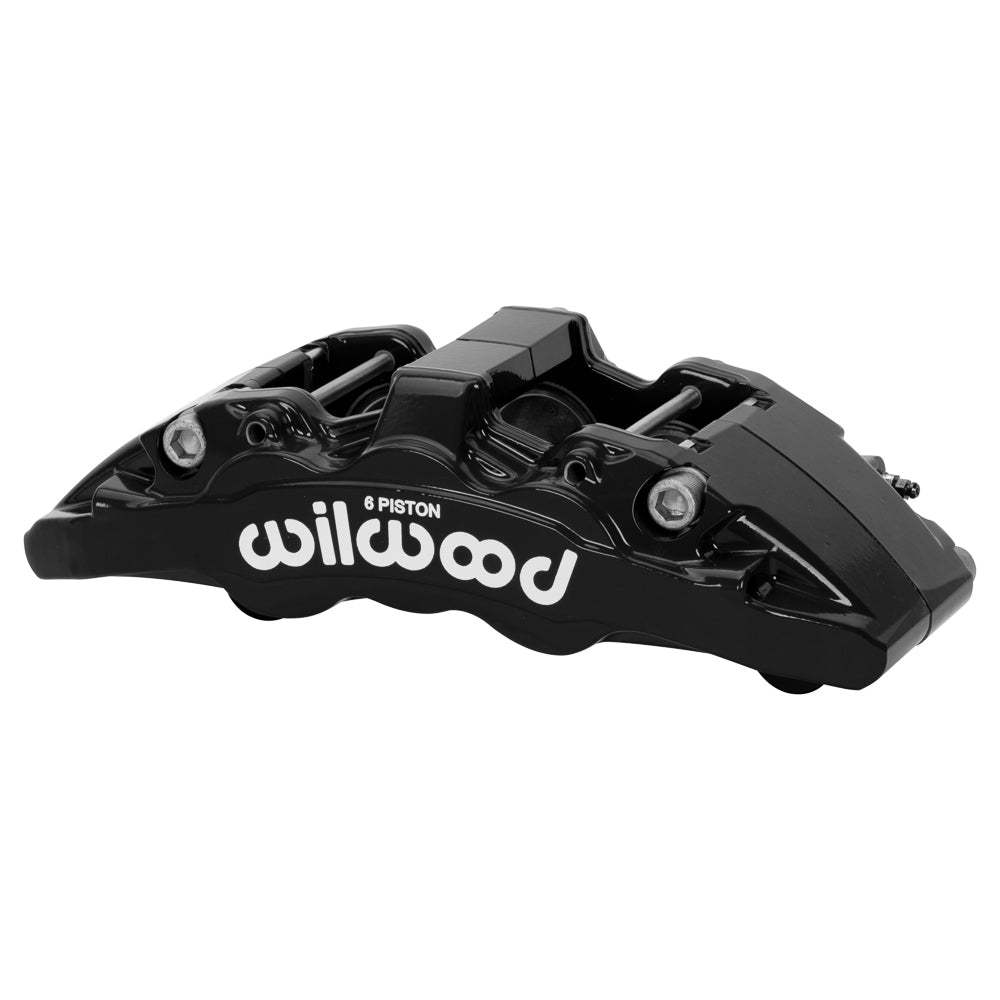

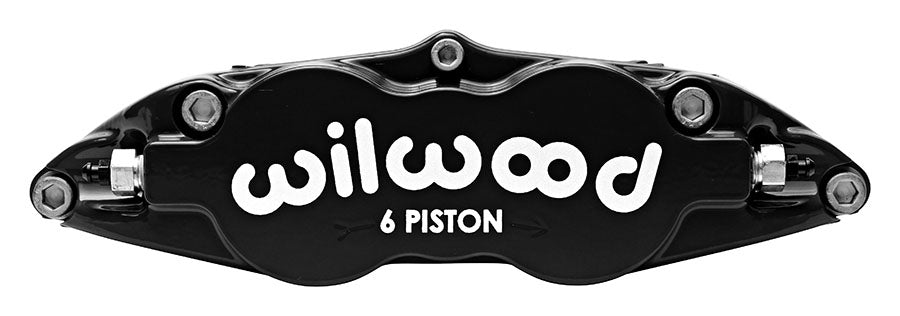

Wilwood - Aero6 Radial Mount Thermlock Piston - BLACK
Wilwood - Aero6 Radial Mount Thermlock Piston - BLACK
Couldn't load pickup availability
The new Aero6/ST forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability.
Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements.
The new Aero6 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly.
Equipped with Thermlock piston technology and Wilwood’s Type III anodize coating. Aero6/ST calipers utilizing the new .80” thick 6620 pad plate, give extra pad life for high heat endurance racing.
Product Specifications
| Rotor Compatibility | |
|---|---|
| Rotor Width (in) | 1.25 |
| Maximum Rotor Width (in) | 1.28 |
| Minimum Rotor Width (in) | 1.10 |
| Maximum Rotor Diameter(in) | 15.00 |
| Minimum Rotor Diameter(in) | 12.19 |
| Brake Pad Specifications | |
|---|---|
| Brake Pad Type 1 | 6620 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 11.1 |
| Total Pad Volume (in³) | 6.6 |
| Mount | |
| Piston Specifications | |
|---|---|
| Piston 1 Bore (in) | 1.75 |
| Piston 2 Bore (in) | 1.38 |
| Piston 3 Bore (in) | 1.38 |
| Total Piston Area (in²) | 5.40 |
| Mounting Specifications | |
|---|---|
| Mount Type | Radial |
| Mount Side | Left Hand |
| Mount Center(in) | 7.09 |
| Mount Hole Size(in) | 0.45 |
| Mount Height(in) | 2.09 |
| Inlet Thread Size | 1/8-27 NPT |
